Christmas Trees

Wellhead control systems for safe and efficient production operations

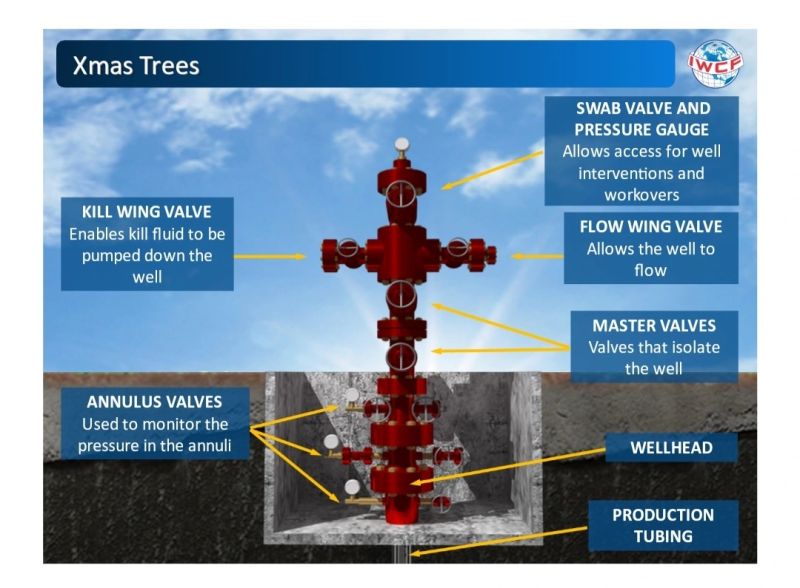

Conventional Christmas Tree

Featured

Standard wellhead Christmas tree assembly with dual wing valves and master valves. Designed for conventional oil and gas production with full API compliance.

Specifications

size: 3-1/16 inch
api spec: API 6A
material: Alloy Steel
pressure rating: 10000 PSI
temperature rating: Class U

Annulus Access Christmas Tree

Provides access to the annulus for monitoring and intervention operations.

Specifications

size: 2-1/16 inch
api spec: API 6A
material: Alloy Steel
access type: Annulus
pressure rating: 5000 PSI

Dual Completion Christmas Tree

Christmas tree system designed for simultaneous production from two separate zones in a single wellbore.

Specifications

size: 7-1/16 inch
api spec: API 6A
material: Super Duplex
completion type: Dual
pressure rating: 15000 PSI

Horizontal Christmas Tree

Compact horizontal Christmas tree design for easy workover operations and reduced platform space requirements.

Specifications

size: 5-1/8 inch
api spec: API 6A
material: Alloy Steel
configuration: Horizontal
pressure rating: 10000 PSI

Injection Christmas Tree

Designed for injecting fluids (e.g., water, gas) into the wellbore.

Specifications

size: 3-1/8 inch
api spec: API 6A
material: Super Duplex
injection type: Water/Gas
pressure rating: 10000 PSI

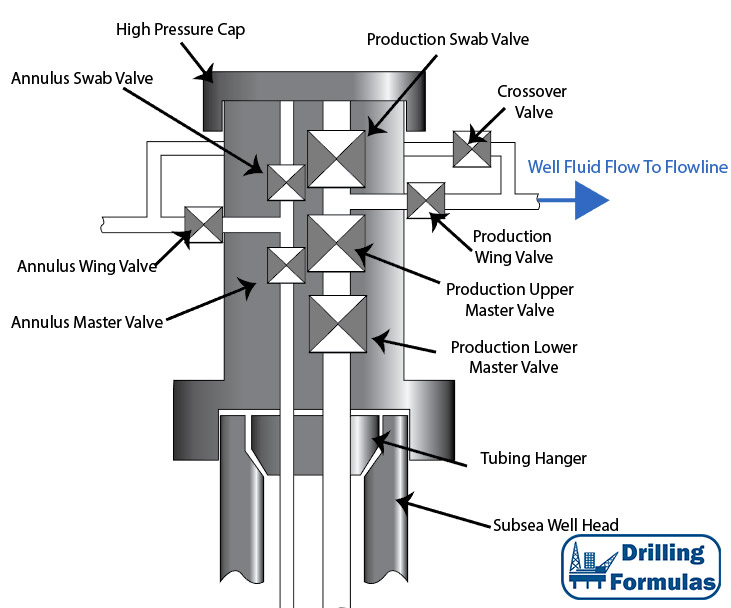

Subsea Christmas Tree

Advanced subsea tree system for deepwater applications with horizontal or vertical configuration. Features remote operation capabilities and enhanced safety systems.

Specifications

size: 4-1/16 inch
api spec: API 17D
material: Super Duplex
water depth: 10000 ft
pressure rating: 15000 PSI
