Wellheads
Robust wellhead assemblies for surface and subsea applications
Casing Head System
FeaturedRobust casing head assembly for surface and intermediate casing strings. Provides reliable pressure containment and supports production equipment.
Specifications
- size
- 13-5/8 inch
- api spec
- API 6A
- material
- Carbon Steel
- connection
- Flanged
- pressure rating
- 5000 PSI

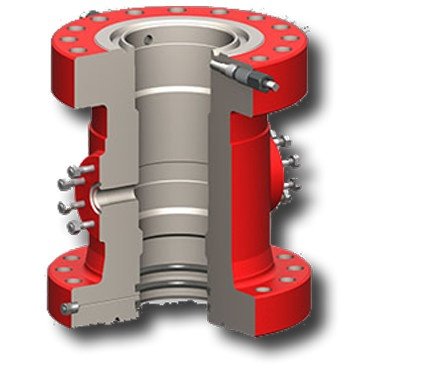

Casing Spool
A component of the wellhead assembly that provides a means of supporting the casing string and sealing the annulus.
Specifications
- size
- 9-5/8 inch
- api spec
- API 6A
- material
- Alloy Steel
- connection
- Flanged
- pressure rating
- 5000 PSI
Choke Manifold
Adjustable choke manifold system for controlling well flow and pressure during drilling and production operations.
Specifications
- api spec
- API 16C
- material
- Alloy Steel
- control type
- Manual/Hydraulic
- configuration
- 2-Choke
- pressure rating
- 10000 PSI
Gate Valve Assembly
API 6A compliant gate valve for high-pressure wellhead applications. Features a robust design for reliable flow control.
Specifications
- size
- 4-1/16 inch
- api spec
- API 6A
- material
- Stainless Steel
- connection
- Flanged
- pressure rating
- 15000 PSI
Tubing Head Assembly
High-performance tubing head with dual seal capability and pressure monitoring ports. Compatible with various Christmas tree configurations.
Specifications
- size
- 7-1/16 inch
- api spec
- API 6A
- material
- Alloy Steel
- seal type
- Metal-to-Metal
- pressure rating
- 10000 PSI

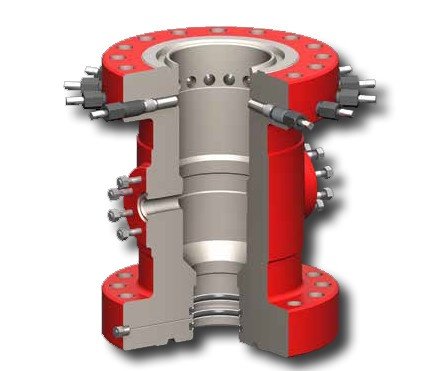

Tubing Spool
A component of the wellhead assembly that supports the tubing string and provides a seal for the tubing annulus.
Specifications
- size
- 7 inch
- api spec
- API 6A
- material
- Carbon Steel
- connection
- Threaded
- pressure rating
- 3000 PSI
